RAITH PIONEER TWO SEM with EBL Capabilities
Electron Beam Lithography combined with Scanning Electron Microscope analytics for ultimate nanofabrication and characterization.
Overview
EBL (electron beam lithography) combined with SEM (scanning electron microscope) analytics represents the ultimate nanofabrication and characterization solution. The Raith PIONEER Two is a revolutionary instrument that defines a new class of nanofabrication systems, uniquely combining professional-grade electron beam lithography with comprehensive scanning electron microscope analytics in a single, fully integrated platform. Built for versatility and precision, it is ideal for research institutions requiring both world-class nanofabrication capabilities and immediate analytical feedback without sample transfer between instruments.
The tool delivers the world's smallest beam size in any professional EBL system, ensuring exceptional nanolithography performance. The tool features a Schottky thermal field emission electron source operating from 20 eV to 30 keV with exceptional long-term stability, minimum beam size of 1.6 nm representing the smallest available in professional EBL systems globally, guaranteed sub-8 nm nanolithography performance with beam current stability better than 0.5% per hour, precision laser interferometer controlled stage with 50 x 50 x 25 mm travel range, and overlay accuracy better than 50 nm with field stitching accuracy better than 50 nm. The unique stage system incorporates integrated rotation and tilt functionality while preserving full SEM analytical capabilities across the entire sample area.
Automation & Control

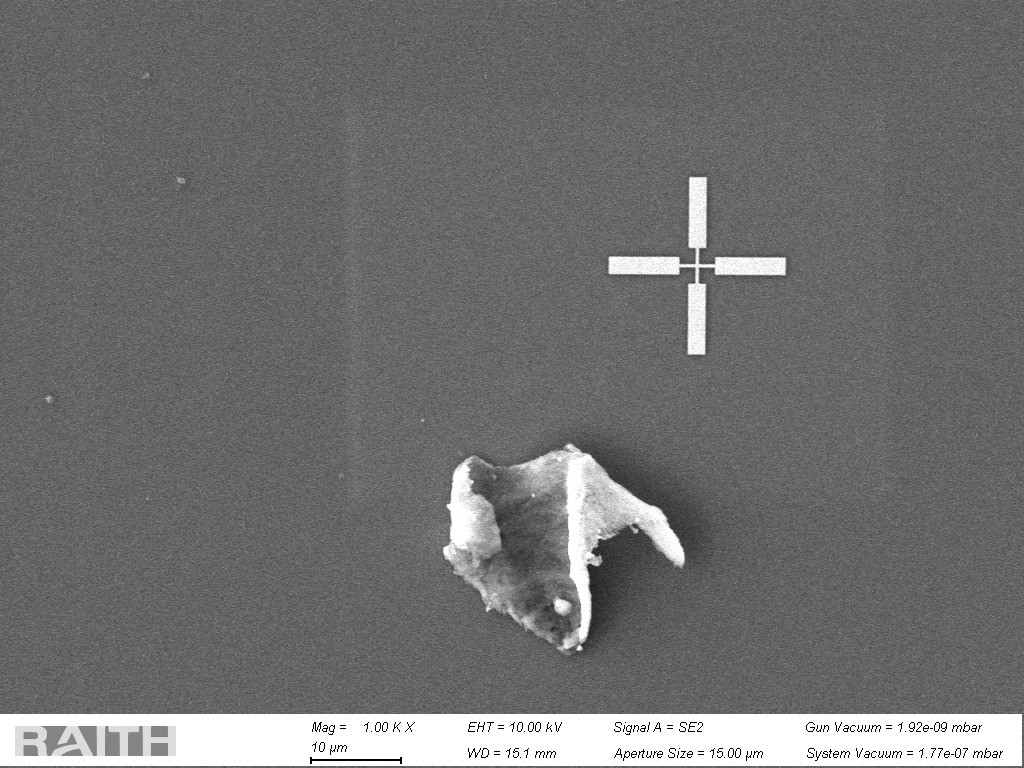

The tool provides specialized electron detectors for comprehensive sample analysis and superior pattern alignment capabilities. The sophisticated detection suite enables automated mark recognition with sub-nanometer precision and comprehensive materials characterization.
The tool provides seamless integration between nanolithography and analytical functions through advanced software control. Unlike conventional SEM-pattern generator combinations, the PIONEER Two incorporates a fully integrated laser interferometer-controlled stage delivering nanometer-level positioning accuracy across large sample areas. The system enables automated mosaic functionality for large-area SEM imaging with negligible stitching errors, comprehensive metrology and process control capabilities, and intelligent workflow management supporting multiple users and complex experimental sequences. Built-in RAITH NANOSUITE software provides complete lithography control, advanced multi-user management, and sophisticated analytical tools for comprehensive device characterization.
Advanced Optional Capabilities
Advanced optional capabilities include rotation tilt module for complete three-dimensional sample orientation and enhanced analytical geometry, high-definition post-lens backscattered electron detector for superior material contrast and compositional analysis with enhanced resolution, and sample navigation on image functionality providing intuitive visual sample positioning and pattern alignment with real-time imaging feedback for precise targeting of specific sample areas.
Applications
The applications of such a distinctive hybrid instrument are extensive, including quantum device development with immediate structural verification, advanced photonic component fabrication and characterization, MEMS and NEMS prototyping with integrated failure analysis capabilities, high-frequency electronic device development, materials science research requiring both modification and analysis, educational nanolithography programs, process development and optimization, quality control applications in nanoscale device manufacturing, and multi-angle analytical studies requiring precise sample rotation and tilting capabilities.
